PPS

The King of Corrosion
Resistance at High Temperatures

PPS is renowned for its continuous service temperature of 200°C, resistance to nearly all chemicals,

extremely low water absorption, and intrinsic flame retardancy.

200°C

< 0.02%

V-0

No Softening

Water Absorption

Flame Retardancy

Core Material Advantages

“High-temperature rigidity + chemical resistance” industrial capability

200°C Corrosion

Resistance

Zero solubility below 200°C with exceptional chemical resistance.

Steel-like Dimensional Stability

Metal-like stability: Low CTE and superior creep resistance.

Near-Zero Water

Absorption

Near-zero water absorption (< 0.02%) for superior underwater reliability.

Intrinsic

V-0

Inherent flame retardancy: V-0 rated without additives.

King of Cost-

Performance

Cost-effective PEEK alternative: 1/3 price for high-volume manufacturing.

PPS Properties and Key Characteristics

Performance MetricPeak Performance
Density1.35–1.65 g/cm³ (GF40% Reinforced)
Tensile Strength80–200 MPa (Reinforced)
Continuous Service Temp200°C (Short-term 240°C)
Melting Point280°C
Heat Deflection Temp (1.8 MPa)>260°C (Reinforced)
Water Absorption<0.02% (Lowest among engineering plastics)
Chemical ResistanceResistant to acids, bases, salts, oils, solvents (<200°C)
Flame RetardancyUL94 V-0 @ 0.4mm, Low smoke, Non-toxic
Dimensional StabilityCTE 20–50 × 10⁻⁶ /°C (Near Metal)
Dielectric Strength20–25 kV/mm
AdvantagesDisadvantages
200°C long-term use + Chemical resistanceModerate toughness (Requires reinforcement)
Extremely low water absorption (<0.02%)High melt viscosity (Requires high mold temp)
Inherent flame retardancy V-0Not resistant to strong oxidizing acids (e.g., conc. HNO₃)
Excellent dimensional stabilityLimited colors (Natural/Black)
High cost-performance ratio (1/3 the price of PEEK)UV resistance requires modification
Summary: "PPS is the strongest anti-corrosion plastic below 200°C with unbeatable cost-performance!"
Application ScenariosCore Value
Engine Compartment200°C + Oil resistance + Lightweight
Chemical Pumps & ValvesAcid & alkali resistance + Zero water absorption
Electronic ConnectorsDimensional stability + Flame retardant
High-temp FiltrationFlue gas resistance + Long service life
Metal Replacement50% weight reduction + Insulation
MaterialCont. Temp (°C)Water Absorp.Chemical Res.Flame Ret.Cost
PPS2000.02%★★★★★V-0★★★★☆
PEI1700.25%★★★★☆V-0★★★★☆
PEEK2500.1%★★★★☆V-0★★★★★
PA661202.5%★★☆☆☆V-2★★☆☆☆
PTFE260<0.01%★★★★★V-0★★★★★

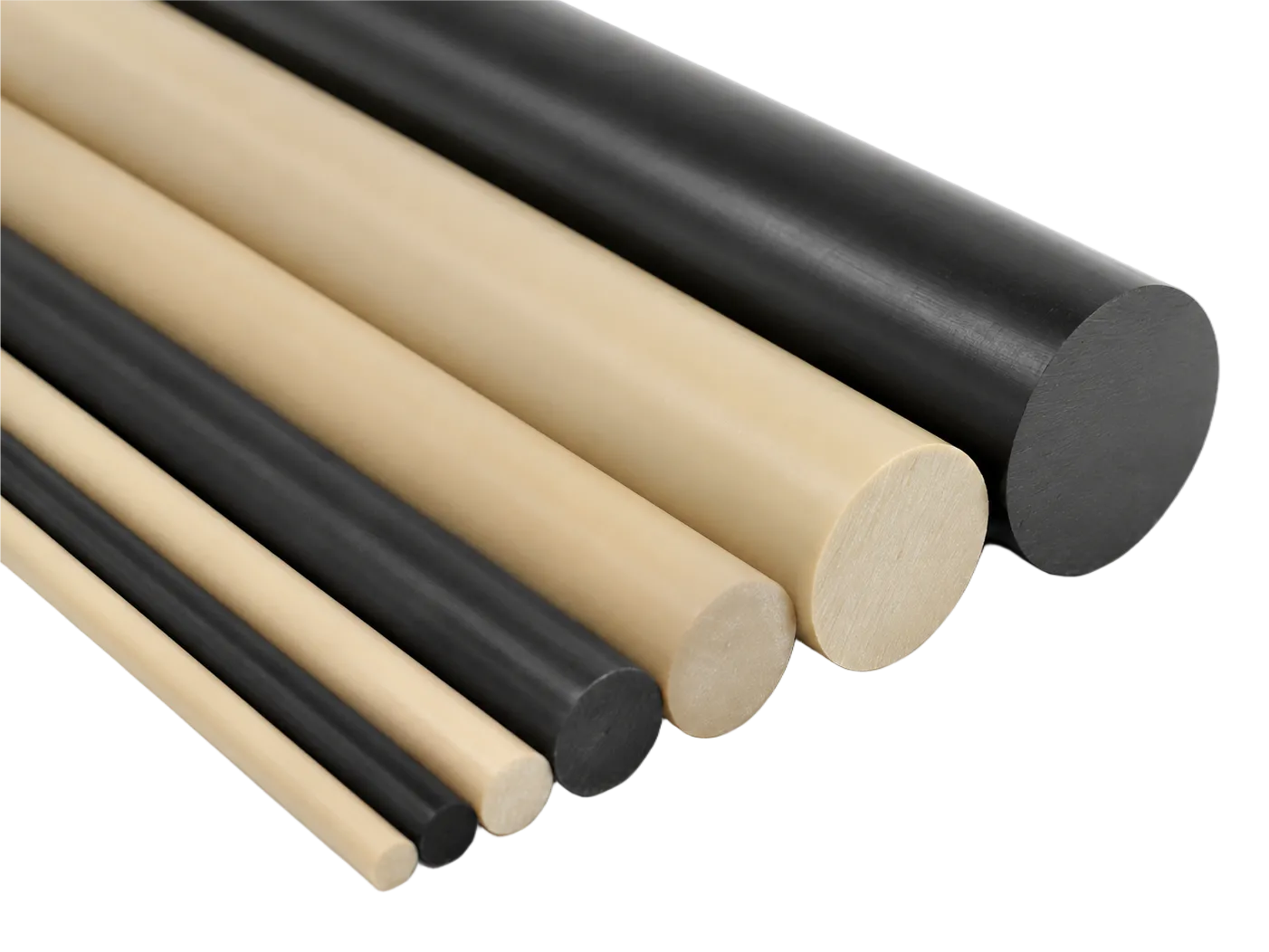

PPS Rod

PPS Rod

Round bar, solid

Diameter: Ø10 – 200 mm
Length: 1000 mm (std)
Color: Natural / Black
Custom cut available
Unfilled GF40% PTFE
Get a Quote →

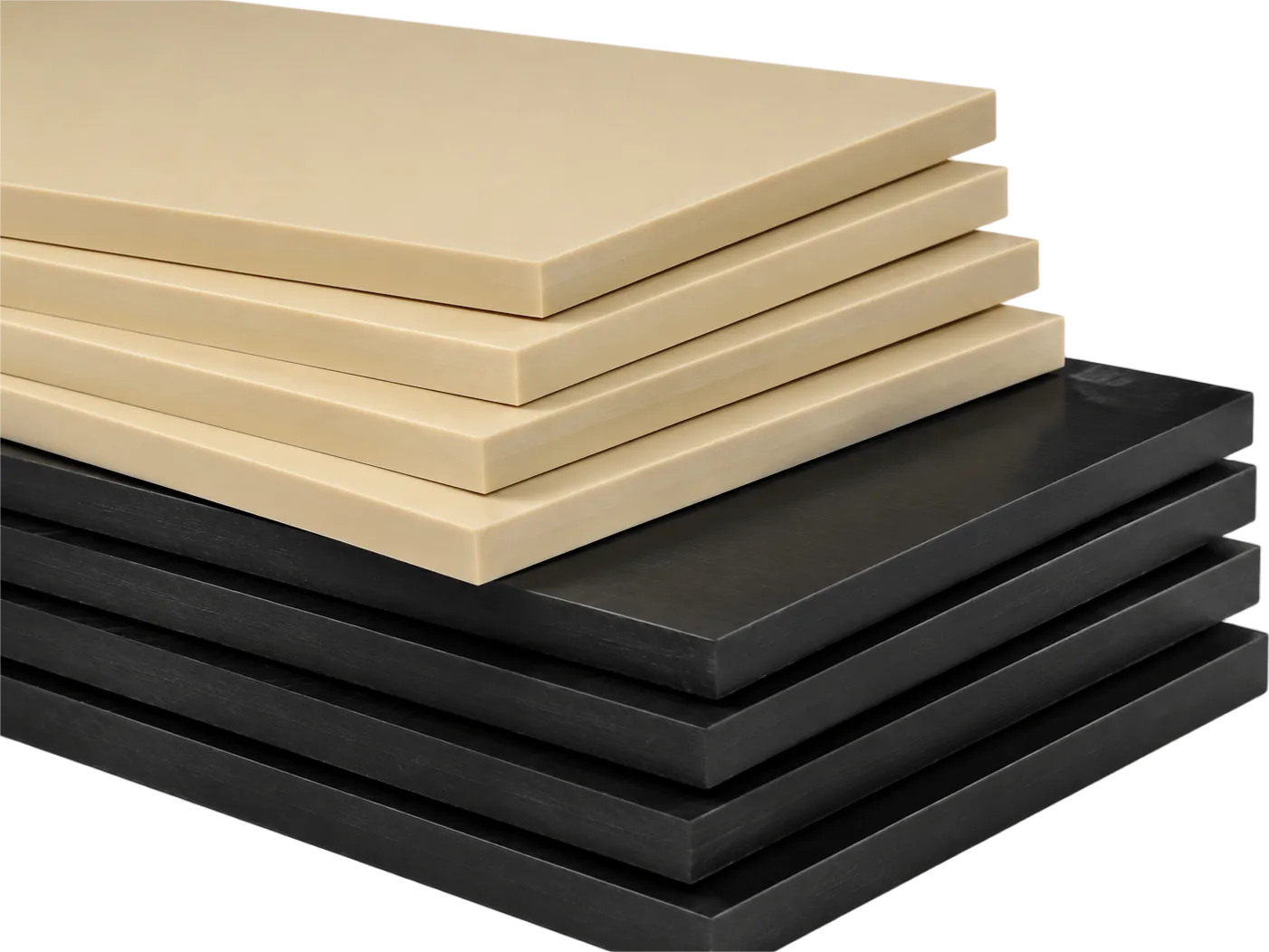

PPS Sheet

PPS Sheet

Flat plate, machining grade

Thickness: 6 – 100 mm
600×600 / 1000×1000 mm
Color: Natural / Black
Custom size available
Unfilled GF40% Carbon
Get a Quote →

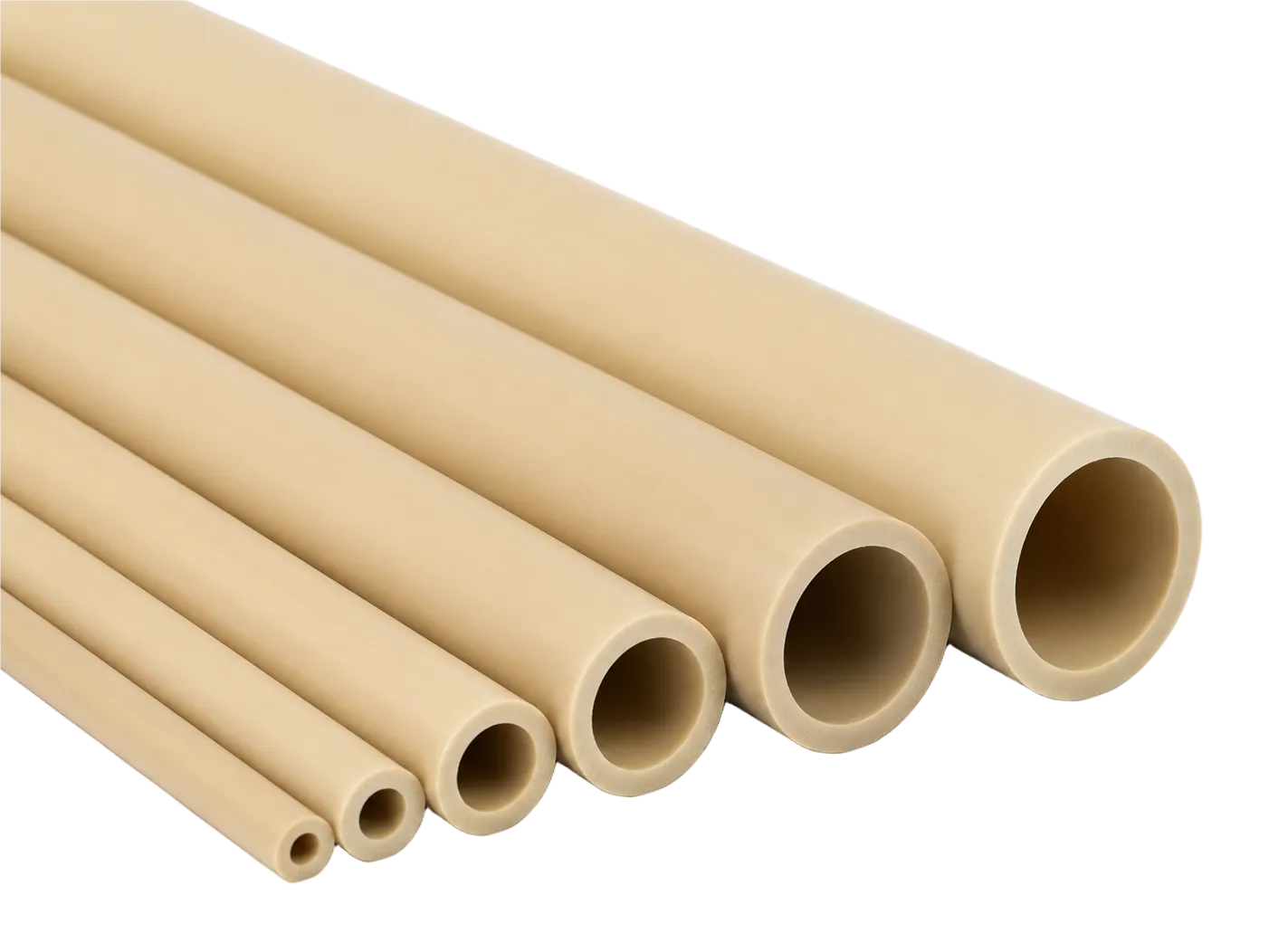

PPS Tube

PPS Tube

Hollow tube, chemical grade

OD: 20 – 150 mm
Length: 1000 mm (std)
Color: Natural / Black
Wall thickness on request
Unfilled GF40%
Get a Quote →
✅ Standard sizes in stock  ·  Ships in 1–3 working days  ·  MOQ: 1 piece  ·  Custom cutting & machining available

Available Grades & Dimensions

GradeFormSize RangeCont. TempColorLead Time
PPS UnfilledRod / SheetØ10–200mm / t6–100mm200°CNatural / Black1–3 days
PPS GF40%Rod / SheetØ10–150mm / t6–80mm240°CBlack1–3 days
PPS+PTFERodØ10–100mm200°CNaturalOn request
PPS TubeTubeOD 20–150mm200°CNatural / BlackOn request

Non-standard dimensions available upon request. Contact us with your specific requirements.

Material Grades & Processing

Customized for Your Application

Choose the right PPS grade and form — we supply both injection-grade compounds and extruded semi-finished stock.

Injection Molding

Compound pellets for precision parts

PPS + GF40%

40% glass fiber reinforced · Tensile strength up to 200 MPa · HDT >260°C · Ideal for structural brackets, pump housings, connectors

PPS + PTFE / Graphite

Wear-resistant grade · COF reduced by 70% · Self-lubricating · Ideal for bearings, seals, valve seats

Conductive PPS

Carbon-filled · Antistatic & EMI shielding · Surface resistivity 10³–10⁶ Ω · Ideal for electronics housings, semiconductor trays

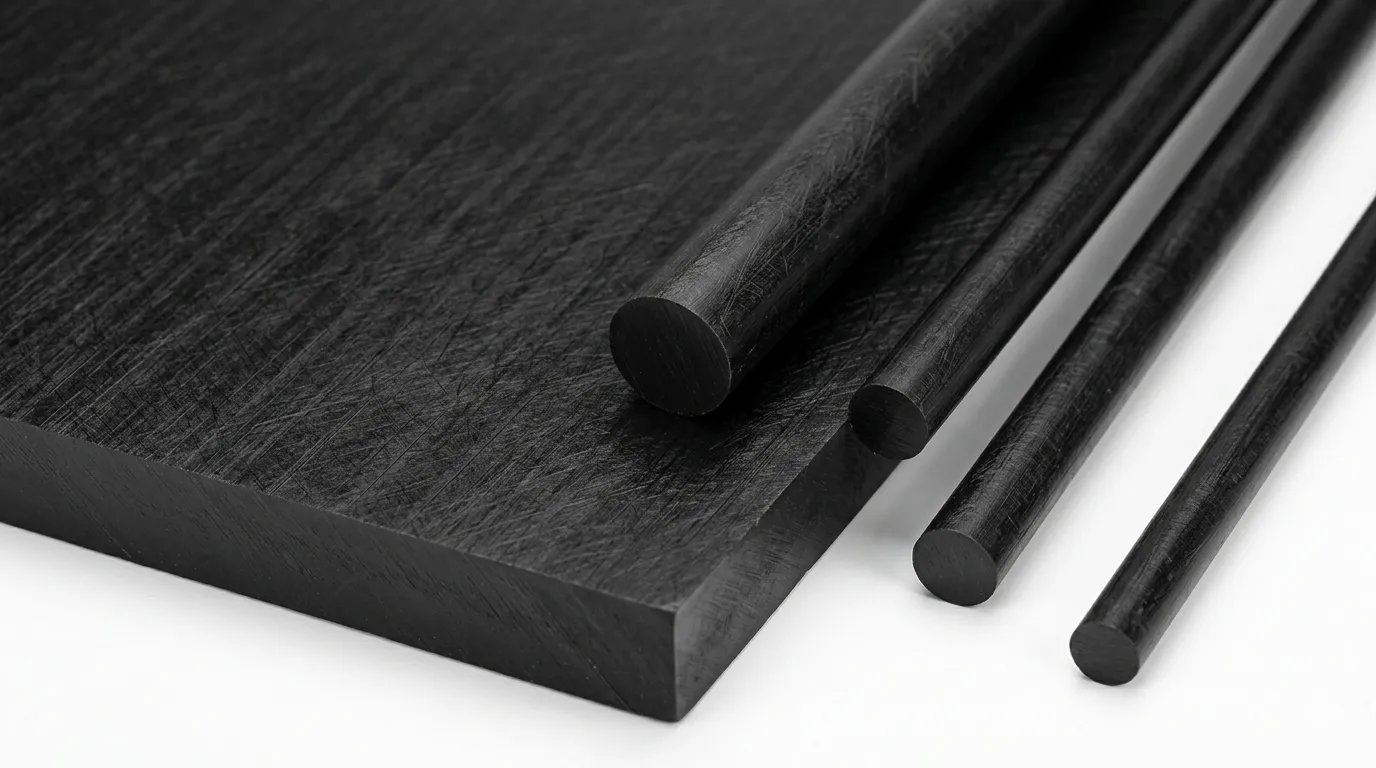

PPS GF40% Glass Fiber Reinforced Sheet

Extrusion / Semi-finished

Rod, Sheet & Tube for machining

PPS Rod

Ø10–200mm · Unfilled / GF40% / PTFE · CNC-machinable · Tight tolerances for precision parts

PPS Sheet

t6–100mm · Up to 1000×1000mm · Unfilled / GF40% / Carbon · Ideal for jigs, fixtures, chemical liners

PPS Tube

OD 20–150mm · Excellent corrosion resistance · Ideal for chemical fluid handling, insulation sleeves, and industrial applications

PPS PTFE Wear Resistant Sheet

Not sure which grade fits your application? Our engineers will recommend the right solution.

Get a Recommendation →

 MARKET TRENDS

With the explosive growth of new energy vehicles (EVs) and the large-scale deployment of 5G base stations, PPS, as a core material for domestic substitution, has seen China’s production capacity account for more than 70% of the global total.

70%

Domestic Capacity

1/3

PEEK Cost ratio

Industry Applications

High-performance PPS parts integrated into an electric vehicle drivetrain for thermal management.

Automotive

Engine bay, fuel pumps, EV cooling modules.

Close-up of gold-plated connectors and electronic components mounted on a PCB using heat-resistant PPS plastic

Electronics

Connectors, 5G base station filters, SMT components.

Amber-colored transparent PPS precision molded components for high-temperature sensor and electrical housing

Chemical

Pump shells, impellers, valves, anti-corrosion linings.

Row of industrial PPS filter bags used in a high-temperature dust collection and flue gas filtration system

Filtration

High-temp flue gas filter bags for power plants.

Intricate circular PPS structural components and insulation rings inside an aerospace turbine or jet engine assembly

Aerospace

Fuel pipe clamps, cable jackets, lightweight interior parts.
